arc¶

Arc Class¶

class gcodeBuddy.arc.Arc(**kwargs)[source]¶

represents an arc toolpath travel

Parameters

center (list[int, float]) – center point of arc travel
radius (int, float) – radius of arc travel
start_angle (int, float) – starting angle of arc travel from +x axis (degrees)
end_angle (int, float) – ending angle of arc travel from +x axis (degrees)
direction ("c", "cc") – direction of arc travel (clockwise or counter-clockwise)

get_angle()[source]¶

Returns: angle about center point traced out by arc travel (degrees)
Return type: int, float

get_center()[source]¶

Returns: center point of arc travel
Return type: list[int, float]

get_direction()[source]¶

Returns: direction of arc travel (clockwise or counter-clockwise)
Return type: “c”, “cc”

get_end_angle()[source]¶

Returns: ending angle of arc travel from +x axis (degrees)
Return type: int, float

get_radius()[source]¶

Returns: radius of arc travel
Return type: int, float

get_start_angle()[source]¶

Returns: starting angle of arc travel from +x axis (degrees)
Return type: int, float

plot()[source]¶: plots arc travel in new window using matplotlib

print()[source]¶: prints key arc values to the console. Useful for debugging/getting info about an Arc object

set_center(new_center)[source]¶

changes center point of arc travel to new_center

Parameters: new_center (list[int/float]) – new center point of arc travel

set_direction(new_direction)[source]¶

changes direction of arc travel

Parameters: new_direction ("c", "cc") – new direction of arc travel

set_end_angle(new_end_angle)[source]¶

changes ending angle of arc travel

Parameters: new_end_angle (int, float) – new ending angle of arc travel from +x axis (degrees)

set_radius(new_radius)[source]¶

changes radius of arc travel to new_radius

Parameters: new_radius (int, float) – new radius of arc travel

set_start_angle(new_start_angle)[source]¶

changes starting angle of arc travel

Parameters: new_start_angle (int, float) – new starting angle of arc travel from +x axis (degrees)

Examples¶

Basic Arc Usage¶

# imports Arc object
from gcodeBuddy import Arc

# creating upper half of unit circle Arc object
upper_half_arc = Arc(center=[0, 0],
               radius=1,
               start_angle=0,
               end_angle=180,
               direction="cc")

# prints [0, 0]
print(upper_half_arc.get_center())

# plots arc in a new pop-up window
upper_half_arc.plot()

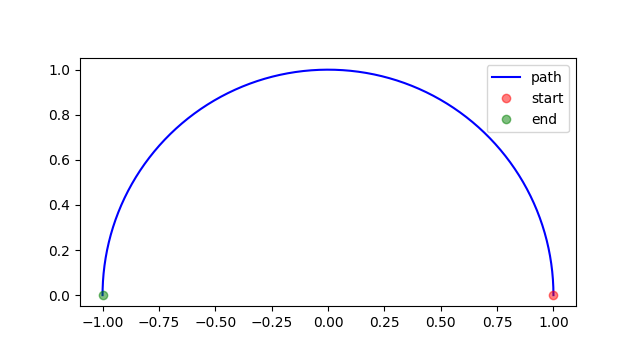

result of upper_half_arc.plot(), showing starting and ending points — result of upper_half_arc.plot()¶

Integrated Usage with Marlin G2/G3 Command Objects¶

# imports Arc object
from gcodeBuddy import Arc

# imports Marlin Command object and function to convert Command Object to Arc object
from gcodeBuddy.marlin import Command, command_to_arc

# creating Command Object
arc_travel_command = Command("G3 X80.0 R10.0")

# converting Command object to Arc object (with an initial position)
arc = command_to_arc([100, 100], arc_travel_command)

# plotting arc object
arc.plot()

result of plotting converted Arc object from Command object — result of arc.plot()¶
